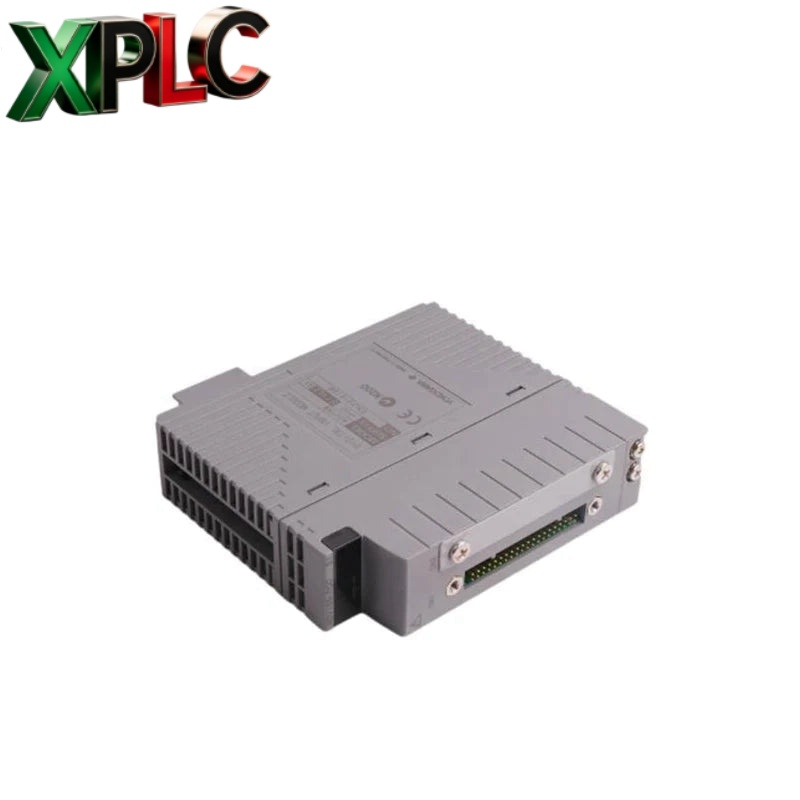

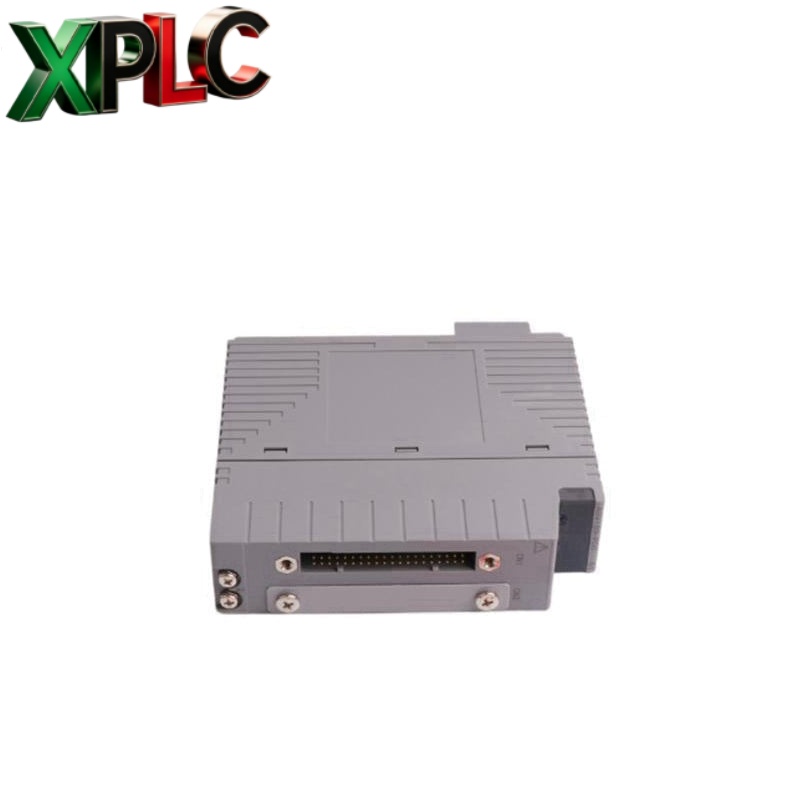

Yokogawa AAP149-S00 Pulse Input Module Compatible with PM1
The Yokogawa AAP149-S00 is a pulse input module for Yokogawa platforms. Model: AAP149 | Number of Input Channels: 16, non-isolated | Input Signal: Transistor contact (open collector). Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Specifications
| Yokogawa AAP149-S00 | is a |
|---|---|
| pulse input module | that is part of the company's CENTUM VP/CS 3000 control system . |
| Model | AAP149 |
| Number of Input Channels | 16, non-isolated |
| Input Signal | Transistor contact (open collector) |
| Input Frequency | 0 to 6 kHz |
| Withstanding Voltage | Not specified |
| Pulse Detection Edge | Trailing edge |
| Data Update Period | 2 ms |
| Maximum Current Consumption | 400 mA (5 V DC) |
| Weight | 0.3 kg |
| External Connection | Dedicated cable (KS2) |
| Manufacturer | Yokogawa |
| Model / SKU | AAP149-S00 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
I/O Module Replacement — Get the Exact Configuration
The Yokogawa AAP149-S00 is an I/O module. What makes replacement orders tricky is that Yokogawa embeds configuration options in the part number — suffix codes can change input range, output type, isolation, or channel count. Two modules with the same base number can be completely incompatible. Always verify the full part number from the label on your existing module. Send us a photo if unsure — our engineers confirm compatibility within 4 hours.
Every I/O module ships factory-sealed and functionally tested: all channels exercised with calibrated sources, communication verified, 48-hour burn-in at 55°C. Printed test report. 12-month warranty. Ships within 24 hours.
Compatible Parts — Same System
These modules share the same system family as the AAP149-S00. Commonly ordered together for complete rack builds or spare parts kits.
