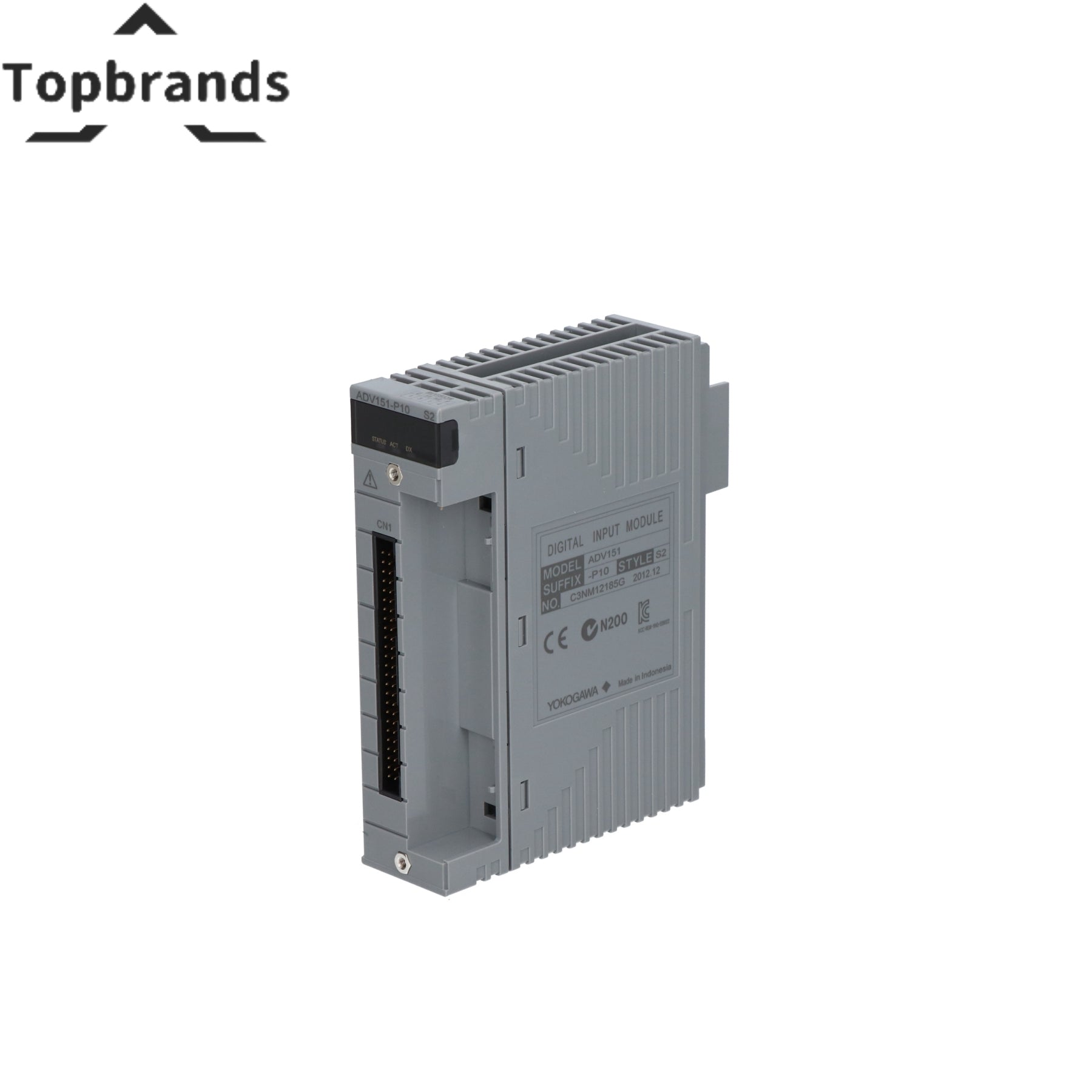

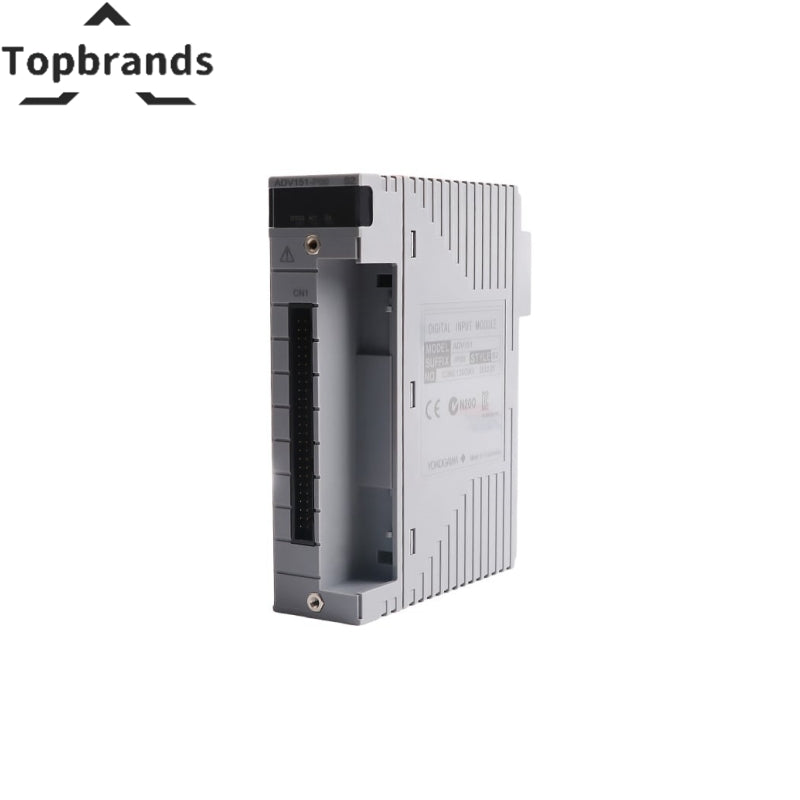

Yokogawa ADV151-P03 Digital Input Module 100% New
A digital input module for Yokogawa systems — the ADV151-P03 handles Input ON Voltage Range: 18 to 26.4 V DC | Input OFF Voltage: 5.0 V DC or less | Input Current (at Rated Input Voltage): 4.1 mA ±20% per channel. Factory-sealed, tested on live rack with 48-hour burn-in. Ships today from Shenzhen. 12-month warranty.
Technical Specifications
| Number of Input Channels | 32 |
|---|---|
| Rated Input Voltage | 24 V DC (sink/source) |
| Input ON Voltage Range | 18 to 26.4 V DC |
| Input OFF Voltage | 5.0 V DC or less |
| Input Current (at Rated Input Voltage) | 4.1 mA ±20% per channel |
| Maximum Allowable Input Voltage | 30.0 V DC |
| Input Response Time | 8 ms or less (for status input) |
| Minimum ON Detection Time | 20 ms (for pushbutton input) |
| Maximum ON/OFF Cycle | 25 Hz (for pushbutton input) |
| Maximum Current Consumption | 500 mA (5 V DC) |
| Weight | Approximately 0.30 kg |
| External Connection | Pressure clamp terminal, Dedicated cable (AKB331), MIL connector cable |
| Manufacturer | Yokogawa |
| Model / SKU | ADV151-P03 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Why the Yokogawa ADV151-P03 Matters for Your Operation
In oil and gas, every component in your control system has a specific job — and when one fails, the ripple effects can shut down an entire production line. The Yokogawa ADV151-P03 is a digital input module that keeps your refinery process control and pipeline compressor stations running without interruption.
Here is what this module actually does. number of input channels: 32; rated input voltage: 24 V DC (sink/source); input on voltage range: 18 to 26.4 V DC; input off voltage: 5.0 V DC or less. These are not generic specifications — they determine whether this module will work in your specific Yokogawa system. We have seen too many cases where a maintenance team ordered a replacement only to find it was the wrong revision or configuration. That is why we test every ADV151-P03 on a live Yokogawa rack before shipping — full signal injection across every channel, not just a visual check.
Installation matters too. The most common cause of DOA reports is not a defective module — it is bent backplane pins from forcing a module in at the wrong angle. Take your time lining up the guides. Apply even pressure. If it does not slide in smoothly, stop and check the alignment. Always wear a grounded wrist strap — static discharge from removing a fleece jacket in a dry refinery control room can exceed 15,000 volts, destroying sensitive input protection diodes instantly.
Think about your sparing strategy. A single Yokogawa ADV151-P03 costs a fraction of what one hour of unplanned downtime costs in oil and gas. We ship replacements within 24 hours from Shenzhen — but even 24 hours is too long if you are losing production. For critical applications, keep one cold spare on your shelf.
